New Electric locomotive -- Elektrolokomotive -- class 186 - DB AG - HO - Roco Fleischmann 79109 View larger

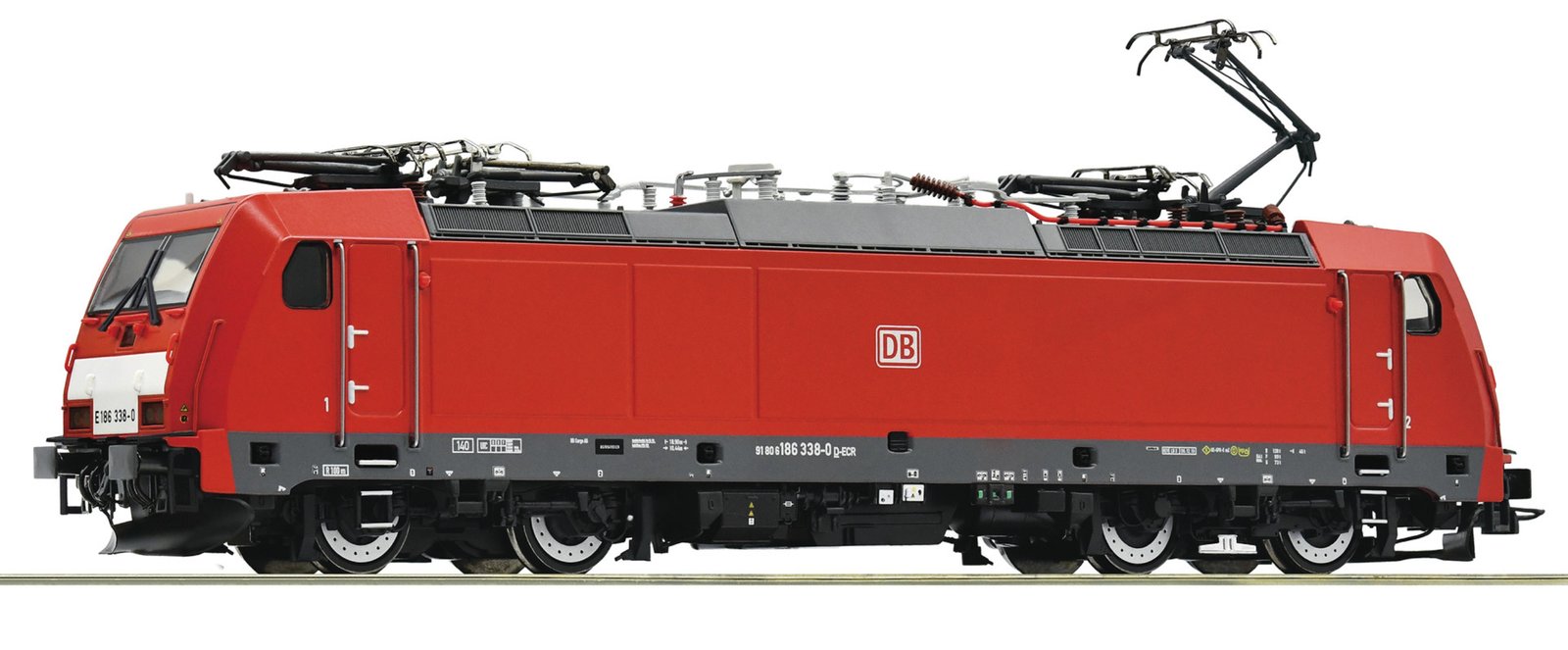

Electric locomotive -- Elektrolokomotive -- class 186 - DB AG - HO - Roco Fleischmann 79109

79109+

New product

Electric locomotive class 186 of the Deutsche Bahn.



■ Use in the international goods traffic
■ Many extra applied plug-in parts, partly executed in etching technology
■ Snowplough mounted on the chassis
■ In digital mode with switchable high beam and individually switchable headlights or tail lights

More details

$300.63 Tax excluded

Add to wishlist

Data sheet

GaugeHO
Operation:AC
EpochVI
Railway company:Deutsche Bahn AG

More info

The class 186 is a multi-system locomotive of the second TRAXX generation from Bombardier. The four-system locomotive type F140 MS(2e) is based on the TRAXX F140 AC2 design. With additional equipment for use with direct current networks 1.5 kV (Netherlands, France) and 3 kV (Belgium, Poland, Italy), it was developed from 2004 onwards; provided it had appropriate additional equipment and train safety systems. With a service weight of 85 t, they have a power output of 5,600 kW and can reach a maximum speed of 140 km/h. Most of the 65 DB AG locomotives (DB Cargo, Euro Cargo Rail) operate in Germany, France and Belgium.


Additional Information

General data

Coupling

NEM shaft 362 with close coupling mechanism

Minimum radius

358 mm

Flywheel

yes

Number of driven axles

3

Number of axles with traction tyres

2

Article number

79109

Scale

H0

Epoch

VI

Railway Company

DB-AG



Electrical

Head light

3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel

LED head light

yes

Additional light function

yes

Control

AC

Interface

Electrical interface for traction units PluX22

Digital decoder

PluX22

Decoder-Type

MS450P22

Sound

yes

Buffer capacitor

yes



Measurements

Length over buffer

217 mm

------------------------------------------------------------------------------------------

Elektrolokomotive Baureihe 186 der Deutschen Bahn.



■ Einsatz im internationalen Güterverkehr
■ Mit separat angesetzten Steckteilen teilweise in Ätztechnik ausgeführt
■ Ausführung mit Schneepflug am Chassis
■ Im Digitalbetrieb mit schaltbarem Fernlicht und einzeln schaltbarem Spitzen- oder Schlusslicht

Die Baureihe 186 ist eine Mehrsystemlokomotive der zweiten TRAXX-Generation von Bombardier. Aufbauend auf der TRAXX F140 AC2 entwickelte man ab 2004 die Viersystemlokomotiv-Typen F140 MS(2e) mit Zusatzausrüstungen für die Gleichstromnetze mit 1,5 kV (Niederlande, Frankreich) sowie 3 kV (Belgien, Polen und Italien), die entsprechenden Zusatzausstattungen und Zugsicherungssysteme vorausgesetzt. Mit einem Dienstgewicht von 85 t leisten sie 5.600 kW. Die Höchstgeschwindigkeit beträgt 140 km/h. Die insgesamt 65 Lokomotiven der DB AG (DB Cargo, Euro Cargo Rail) sind hauptsächlich in Deutschland, Frankreich und Belgien anzutreffen.


Weitere Informationen

Allgemeine Daten

Kupplung

Schacht NEM 362 mit KK-Kinematik

Mindestradius

358 mm

Schwungmasse

Ja

Anzahl angetriebene Achsen

3

Anzahl Achsen mit Haftreifen

2

Artikelnummer

79109

Spur

H0

Epoche

VI

Bahngesellschaft

DB-AG



Elektrik

Spitzenlicht

3-Spitzenlicht / 2-Schlussleuchten, fahrtrichtungsabhängig

LED Spitzenlicht

Ja

zusätzliche Lichtfunktion

Ja

Stromsystem

AC

Schnittstelle

Elektrische Schnittstelle für Triebfahrzeuge PluX22

Digital-Decoder

PluX22

Decoder-Typ

MS450P22

Sound

Ja

Pufferkondensator

Ja



Abmessungen

Länge über Puffer

217 mm

Reviews

Write a review

Electric locomotive -- Elektrolokomotive -- class 186 - DB AG - HO - Roco Fleischmann 79109

Electric locomotive -- Elektrolokomotive -- class 186 - DB AG - HO - Roco Fleischmann 79109

Electric locomotive class 186 of the Deutsche Bahn.



■ Use in the international goods traffic
■ Many extra applied plug-in parts, partly executed in etching technology
■ Snowplough mounted on the chassis
■ In digital mode with switchable high beam and individually switchable headlights or tail lights
