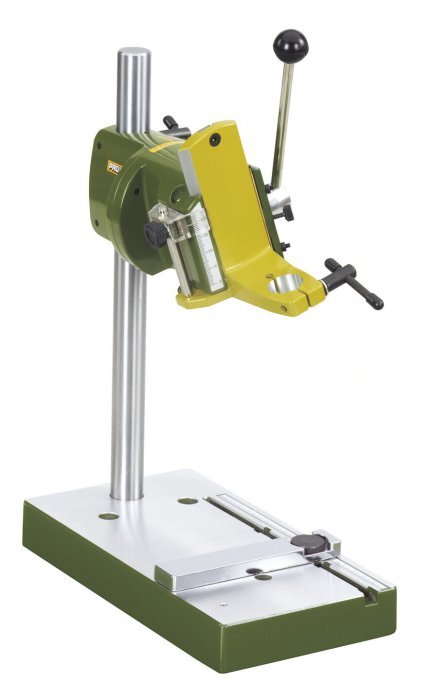

The MICROMOT drill stand MB 200 from PROXXON made of die-cast aluminium parts

The MICROMOT drill stand MB 200 by PROXXON, made of die-cast aluminium parts. With CNC-milled guides and fits. Boom head with dovetail guide can be swivelled up to 90° (scale ring available). Enables inclined drilling and versatile milling. Highly reduced rack and pinion feed with return spring for a lot of feeling with little effort. Practical drill depth gauge with adjustable stop (max. working stroke of 40 mm). 20 mm system fit for MICROMOT mill/drill units. Solid, hard chrome-plated steel column (280 x 20 mm), throat depth (inner column to the middle of the tool): 140 mm. Face-milled table (220 x 120 mm) with parallel fence and graduation. Threaded boreholes for mounting the MICRO coordinate table KT 70 and boreholes for screwing down the drill stand itself are available.

Technical Data:

• Weight 2.2 k
• Table: 220 x 120 mm
• max. working stroke: 40 mm
• boom head can be swivelled up to 90°
• steel column: 280 x 20 mm

Area of application: Enables drilling, inclined drilling and, above all, versatile milling

Product materialien:

• Worktable: die-cast aluminium
• Steel column: hard chrome-plated

Produkthighlights:

• 20 mm system fit for MICROMOT devices
• Practical drill depth gauge with adjustable stop
• Face-milled table with parallel fence and graduation

Not included in delivery: Machine vice MS4

PROXXON article number: 28 600
