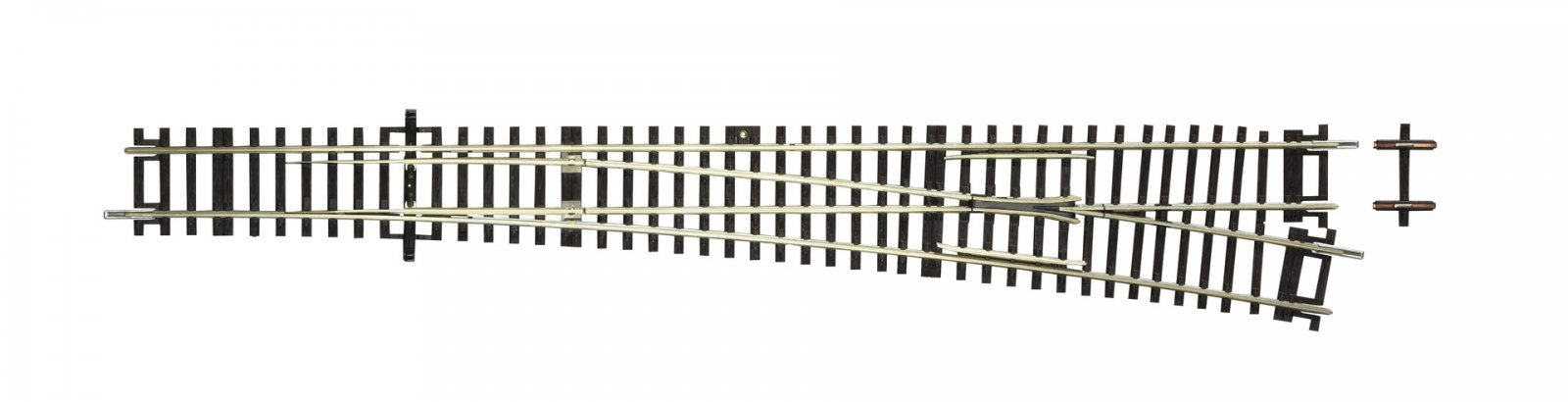

Turnout right hand Wr10, without turnout mechanism.

Length 345 mm (= G1 + G½), branch angle 10°, branch radius 1946 mm, frog angle 8.1°.

An 5-mm spacer element (D5) is included for diagonal installation.

Suitable turnout mechanisms: 40296, 40298 or 10030.

■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
■ Polarisation of the turnout frog possible in combination with electric ROCO turnout drives
