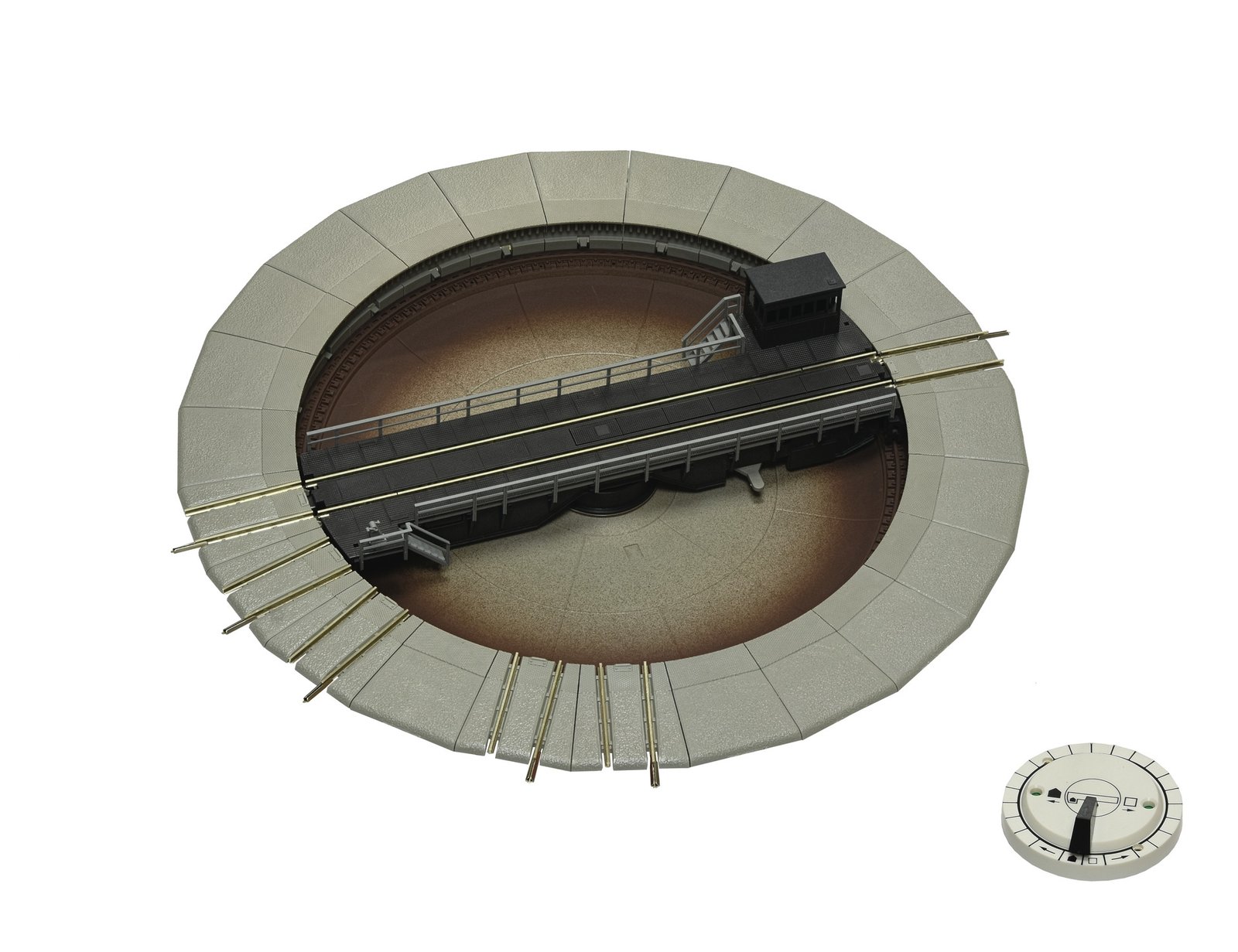

Electrically operated turntable and switchable track exits with turntable switch art. no. 6910.

The basic equipment for the turntable includes 6 exit tracks. The exit tracks can be attached and reattached at an angle of 15° as required, and can be extended to a total of 24 track connections. The power feed is activated within the turning bridge. The power to the track exit with which the turntable is lined up, either left or right, can be fed with power using the switch 6910. All other track exits remain isolated (even those opposite each other).
With a revolving platform length of 183 mm.
Suitable for locomotives with a wheel base length up to a 170 mm.

Installation dimensions:
Installation diameter: 203 mm
Installation depth: approx. 25 mm
Exterior diameter: 257 mm

Note: By simply replacing the rail connectors installed as standard with 4081722 transition rail connectors, you can adapt the turntable and the 35901 supplementary set to the ROCO TT track system with 1.8 mm high rail profiles.
