Couplers Short 1-4" Underset w 213 & 234 Draft Gear Box & Talgo Truck Adaptors 2 P- 4 pcs - HO - Kadee 24

24

New product

$5.39 Tax excluded

Add to wishlist

Data sheet

GaugeHO
EAN/UPC765484000242

More info

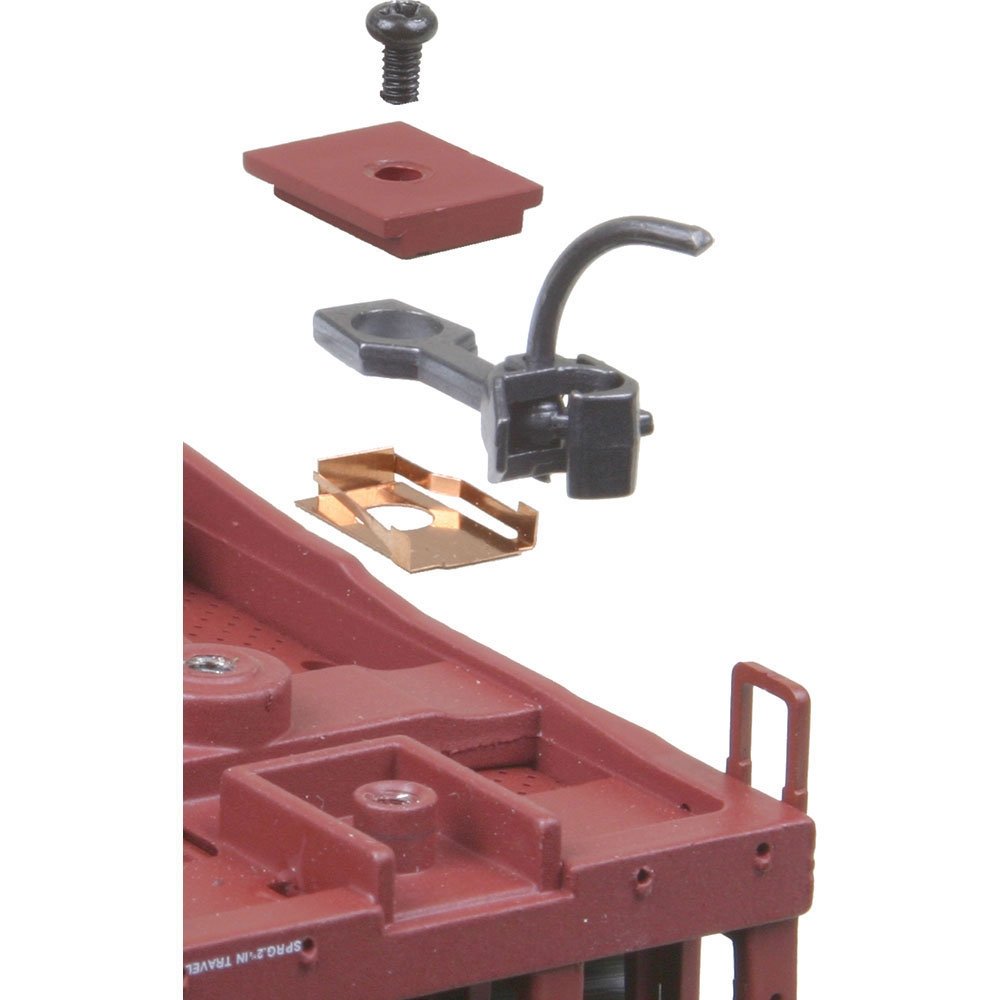

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The#24 Magne-Matic® Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Two pair per package

USA Flag  Made in the U.S.A.

HO-Scale

Package Includes:

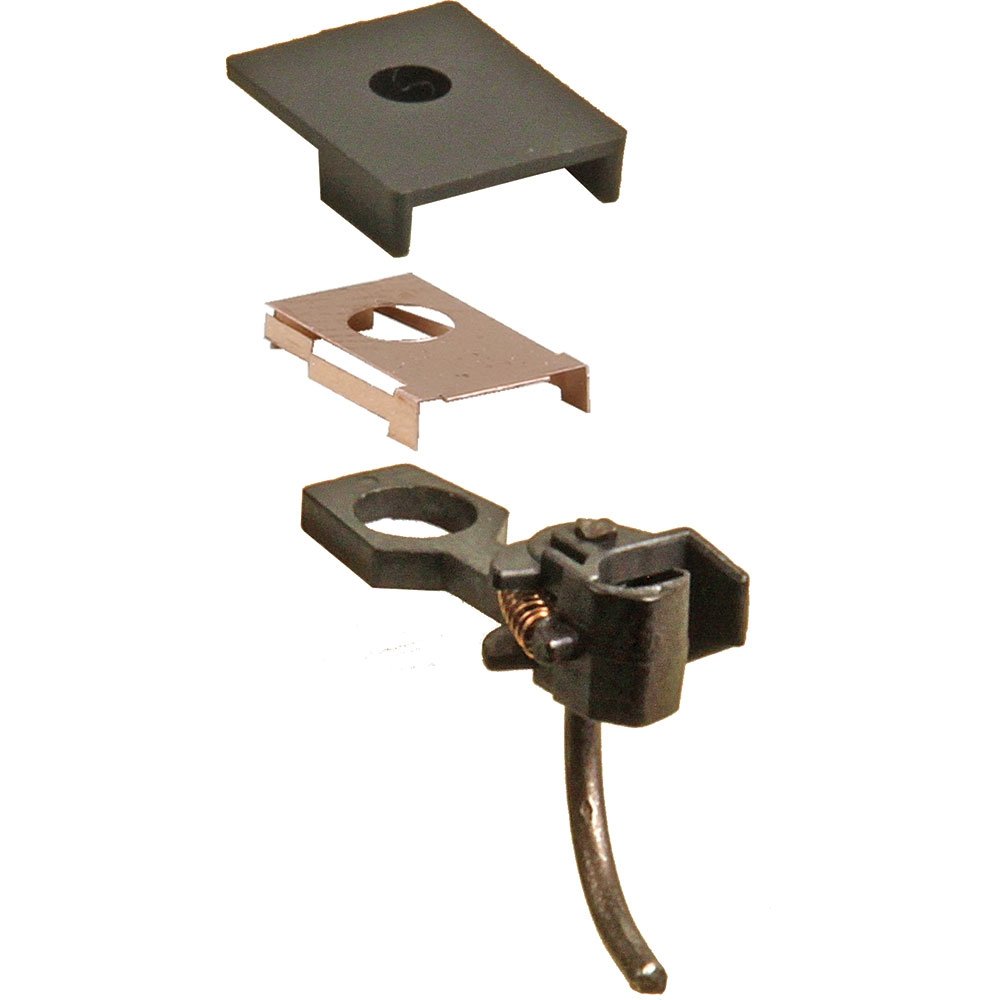

  • (2) Pair #24 Plastic Shank Couplers - Short Underset Shank
  • (2) Pair #634 Centering Spring NO.5® Style

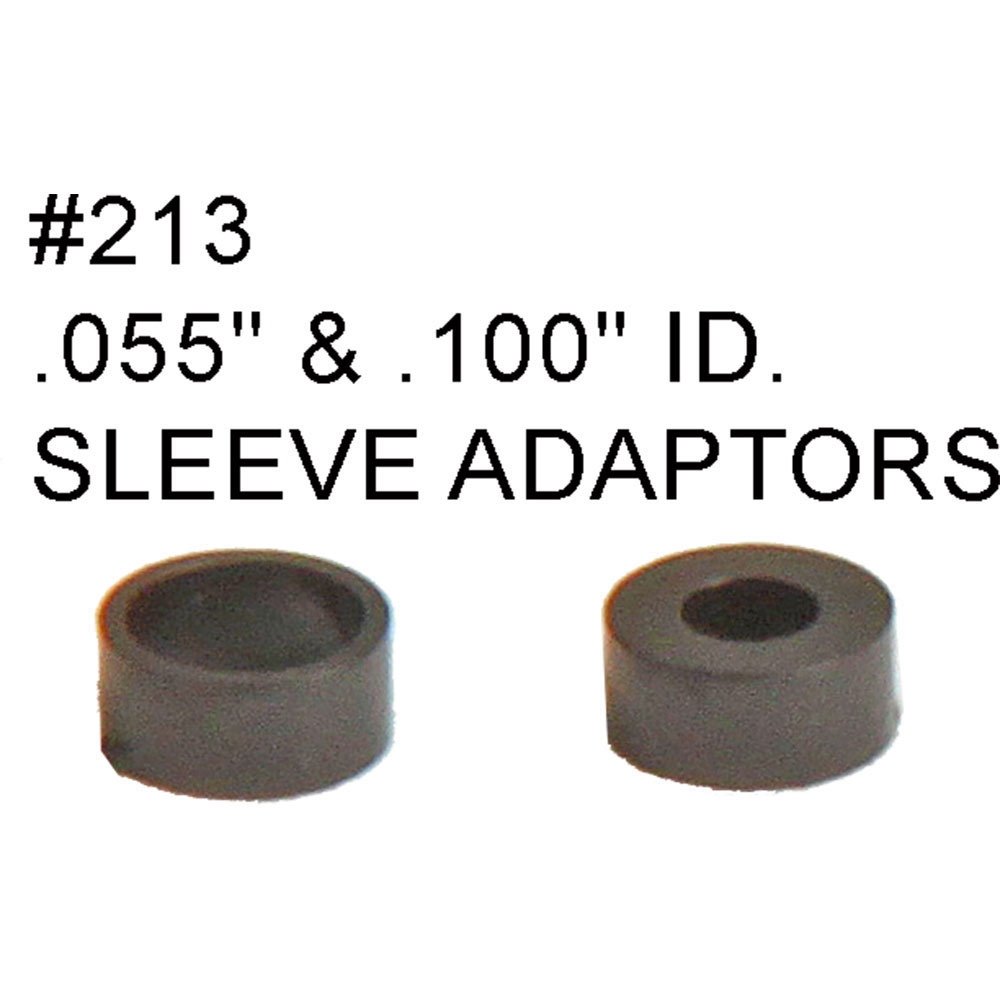

  • (2) Pair #213 055" ID & .100" ID Bushing/Sleeves
  • (2) Pair #212 Talgo Truck Adaptors
  • (2) Pair #213 Gearboxes
  • (2) Pair #232 Gearboxes
  • (2) #622 Knuckle Springs

#24 Plastic Coupler Features:
Material -   Metal Knuckle, Plastic Coupler Shank
Shank Length -   Short (1/4") (center hole to back of coupler head)
Coupler Offset -  Underset
Knuckle Spring -   #622
Centering System -   Standard Shank
Centering Spring -   #634 Centering Spring NO.5® Style
Head -   Standard Head
Works In Place of -  #144, short underset "clone" couplers
Works With -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

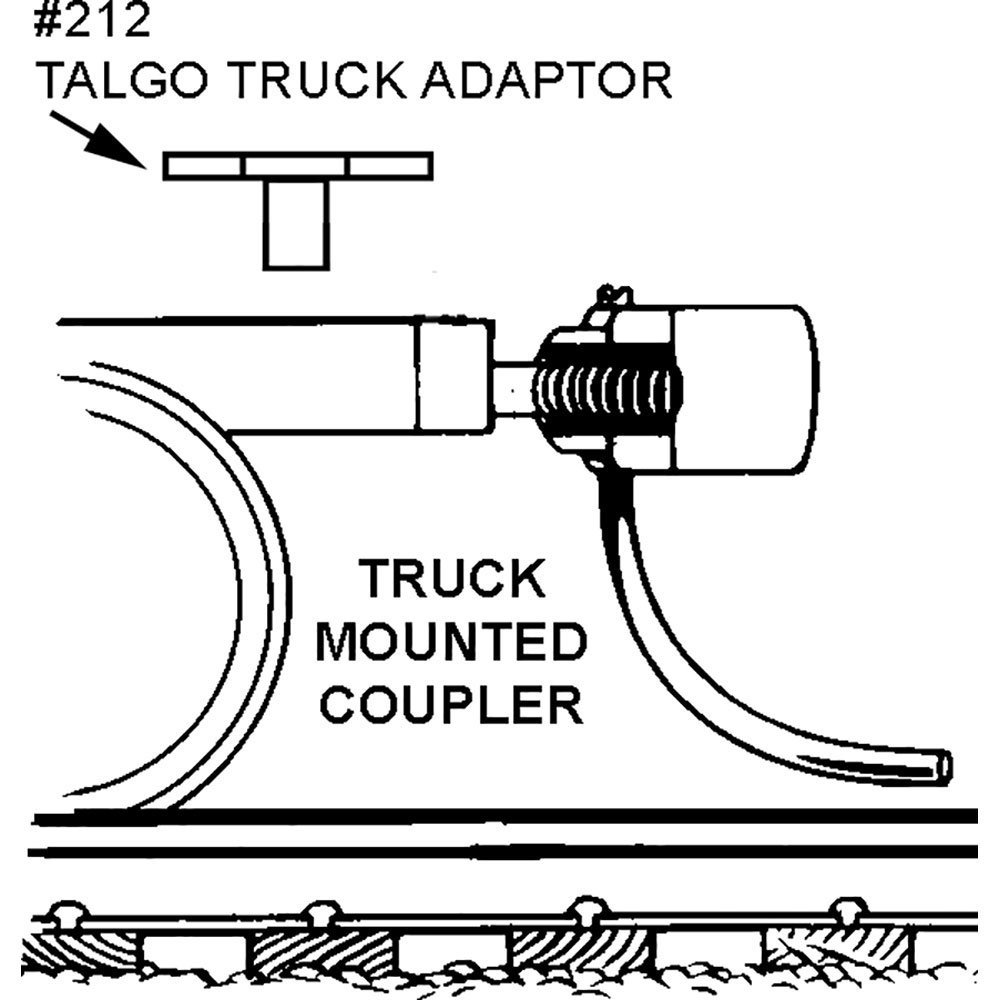

#212 Talgo Truck Adaptors:
Material -   Insulated Plastic
Works With -   NO.5®, #58, 20-Series and all Whisker® Couplers
To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.
NOTE: So it is important to check coupler height and make sure it is correct "before" you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

#213 Plastic Draft Gearboxes:
Material -   Insulated Plastic
Dimensions -   25/64"L x 5/16"W x 3/32"H
Works With -   NO.5®, #58, 20-Series and all Whisker® Couplers

#232 Plastic Draft Gearboxes & Lids Features:
Material -   Insulated Plastic
Dimensions -   29/64"L x 19/64"W x 7/64"H
Works With -   NO.5®, #58, 20-Series and all Whisker® Couplers

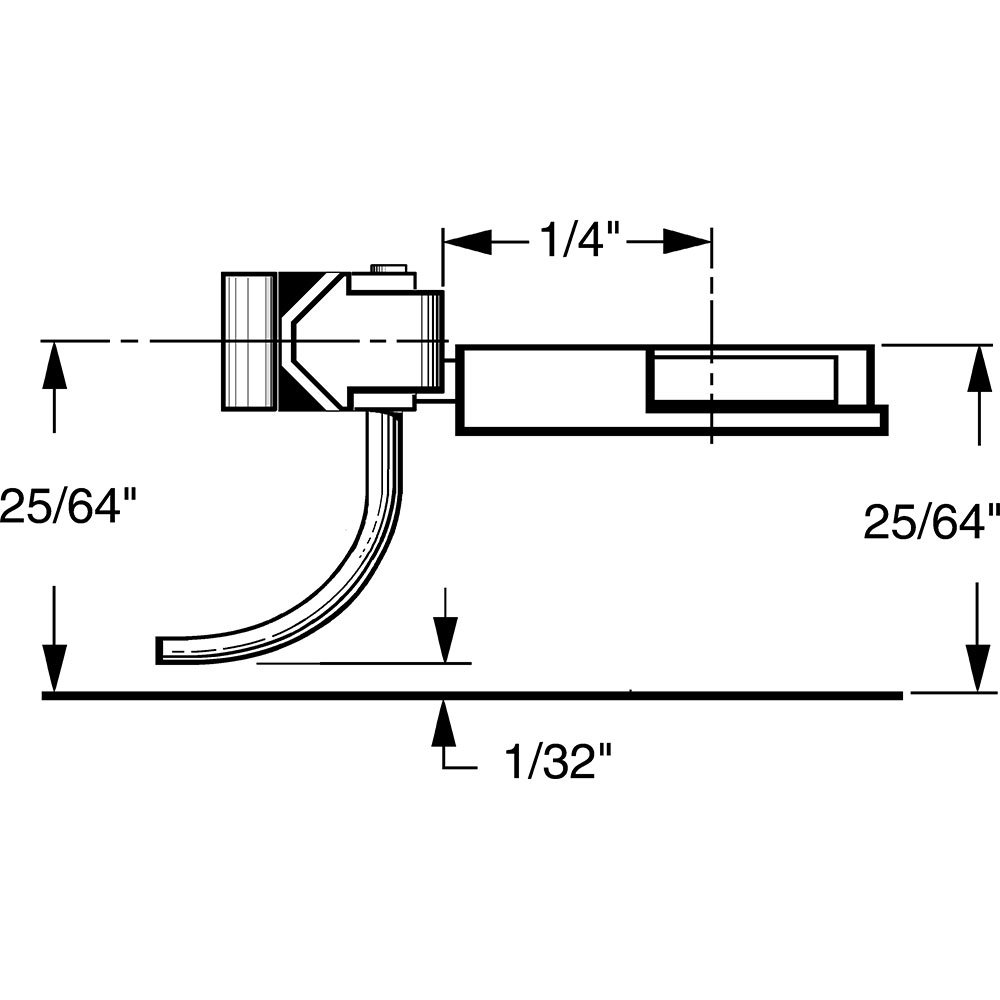

#24 with a #212 Talgo Truck Adaptor. Mounting Specifications:
Centerline -   25/64"
Trip Pin Height -   1/32"

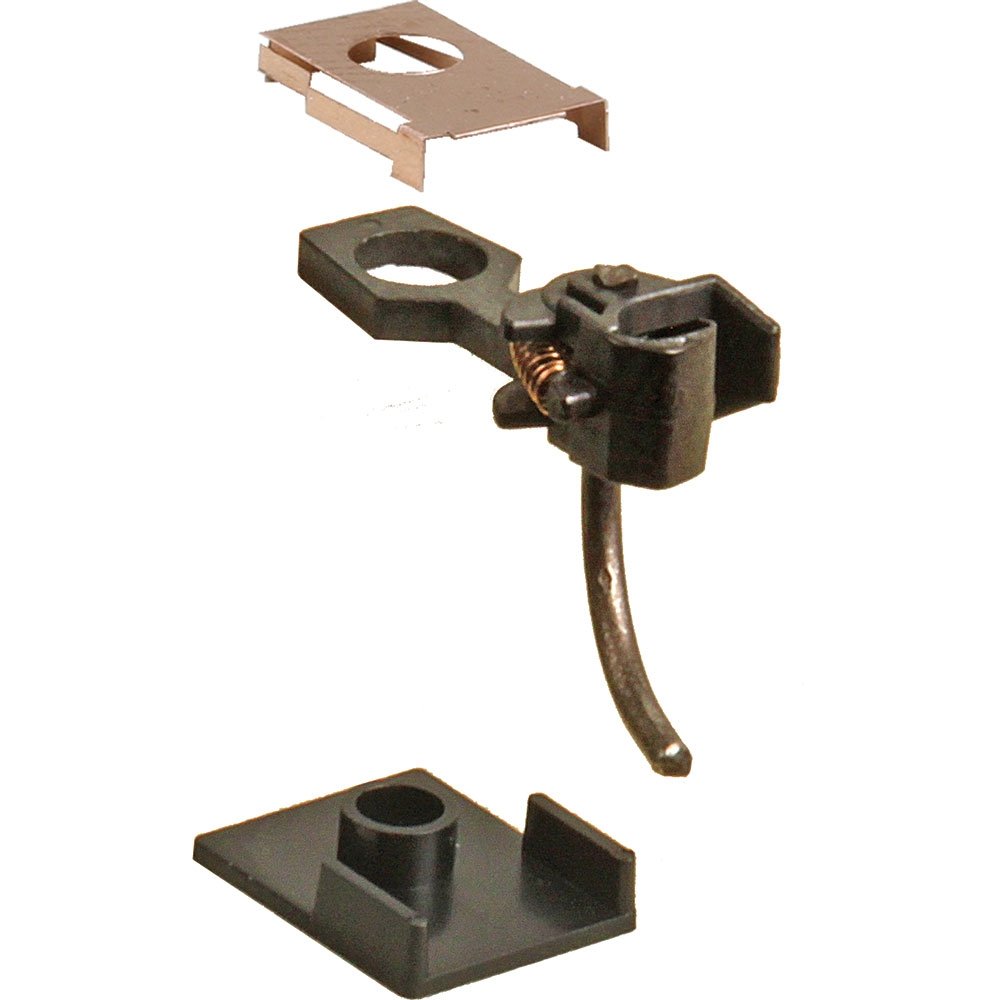

#24 in a #213 monted on bottom. Mounting Specifications:
Mounting Height -  25/64"
Centerline -   25/64"
Trip Pin Height -   1/32"
Center Hole -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

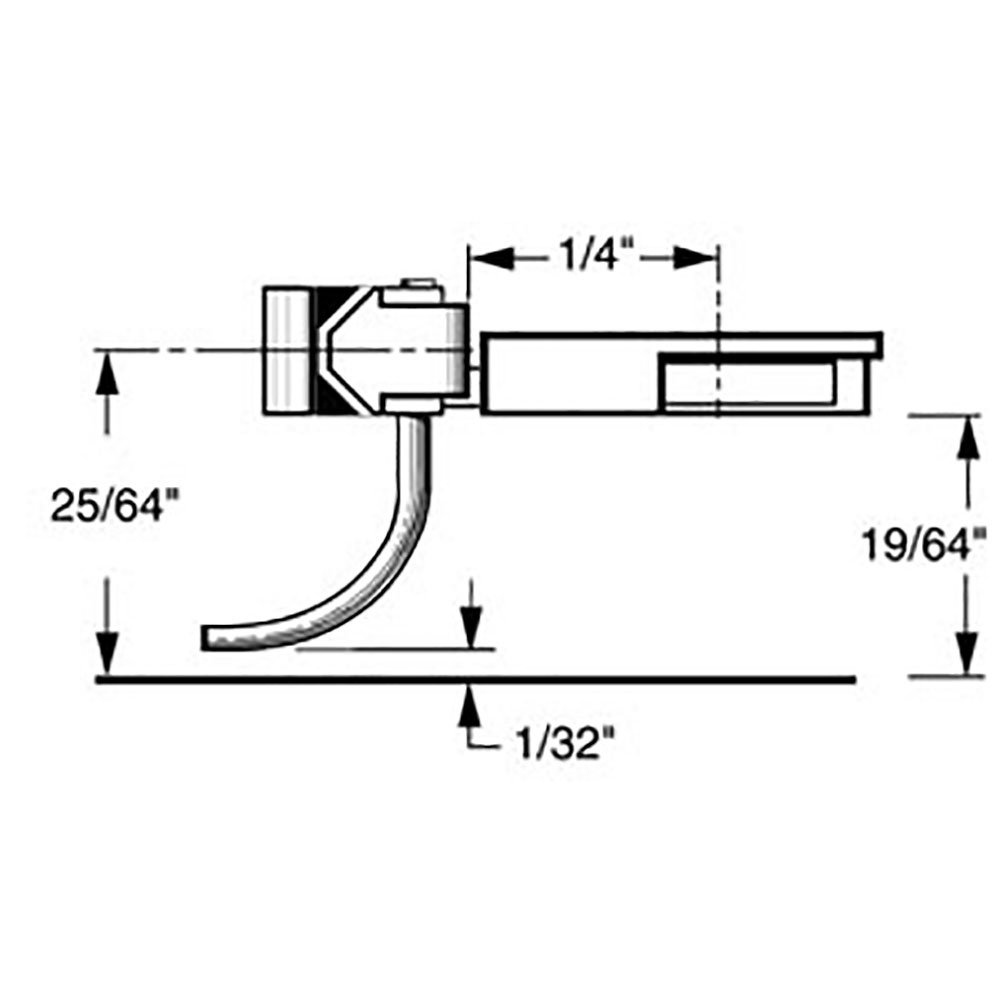

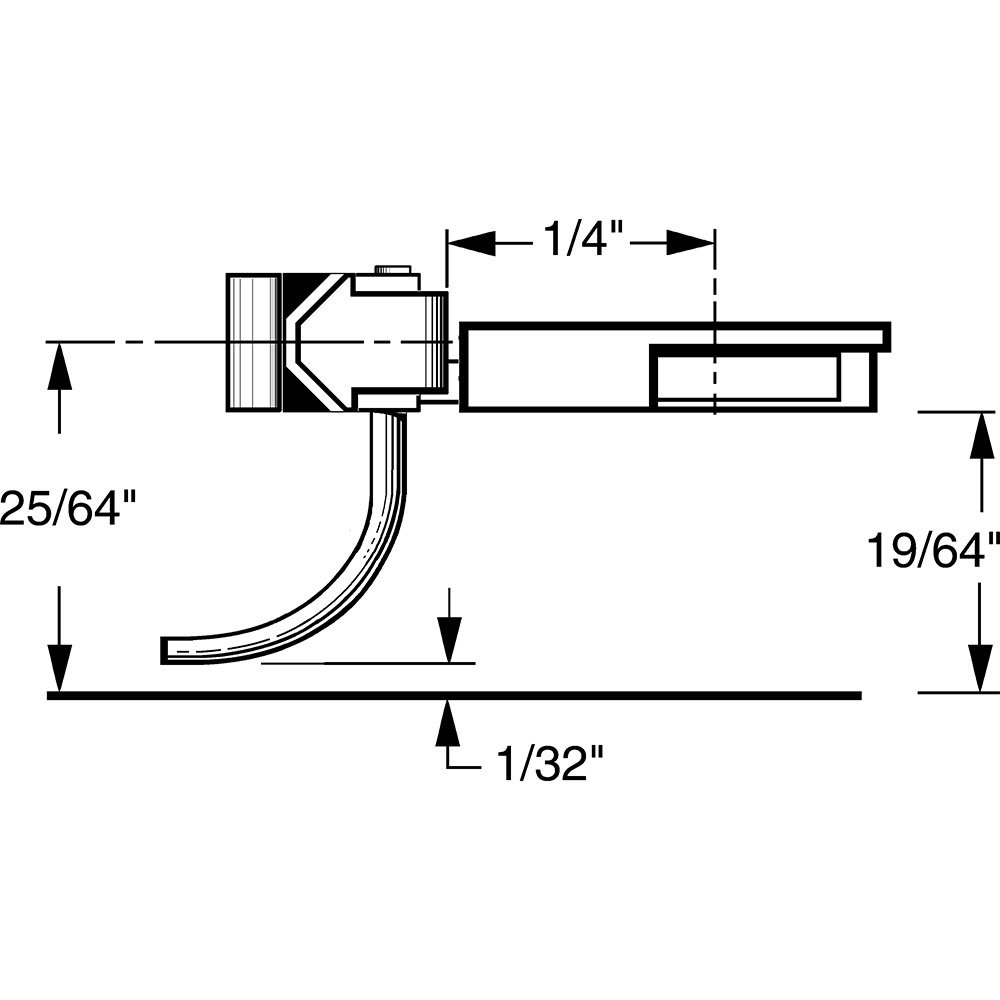

#24 in a #213 monted on top. Mounting Specifications:
Mounting Height -   19/64"
Centerline -   25/64"
Trip Pin Height -   1/32"
Center Hole -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

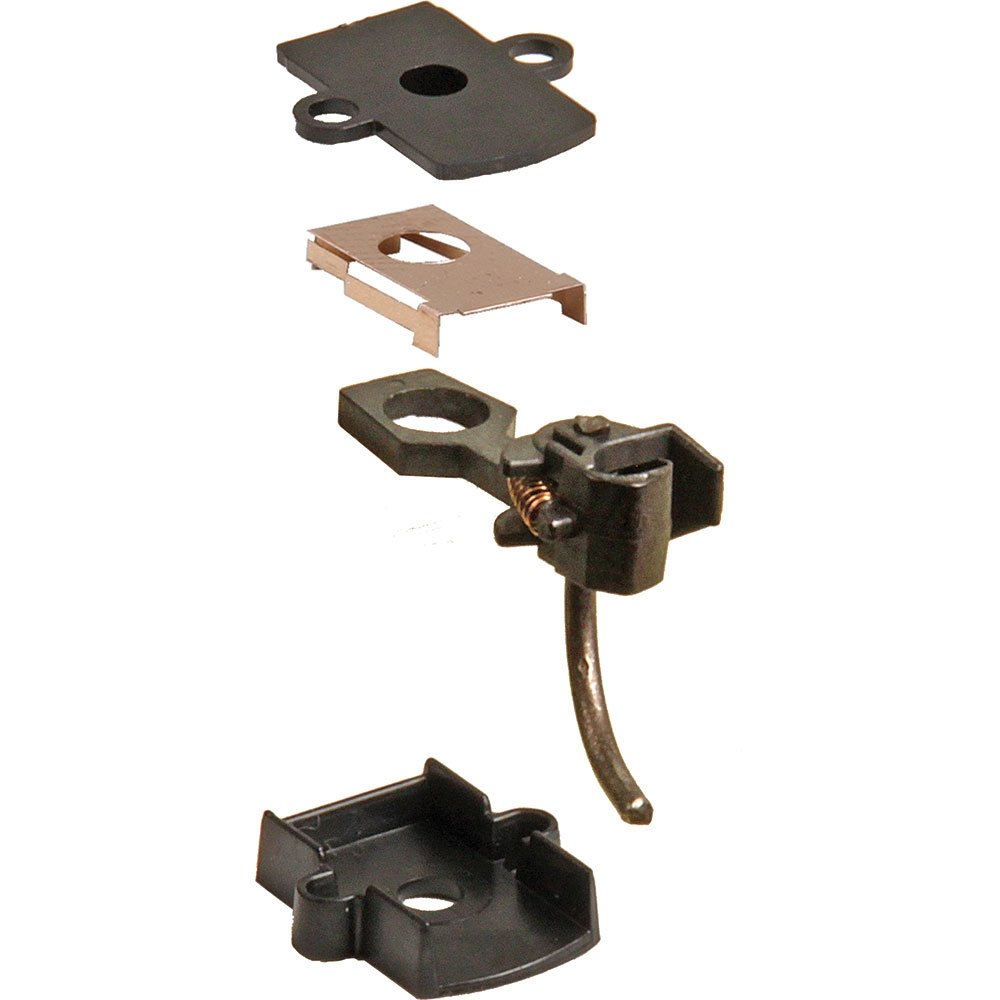

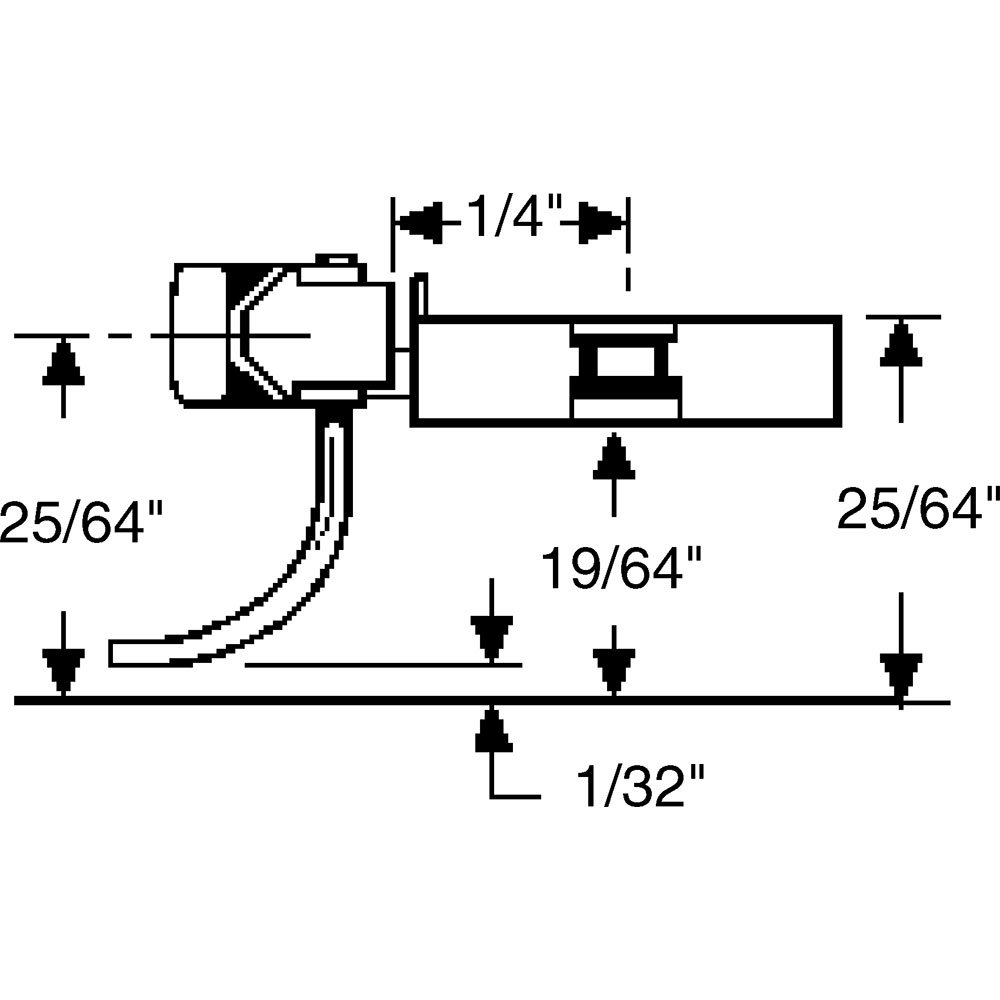

#24 in a #232 Mounting Specifications:
Mounting Height -   25/64"
Centerline -   25/64"
Trip Pin Height -   1/32"
Center Hole -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)
