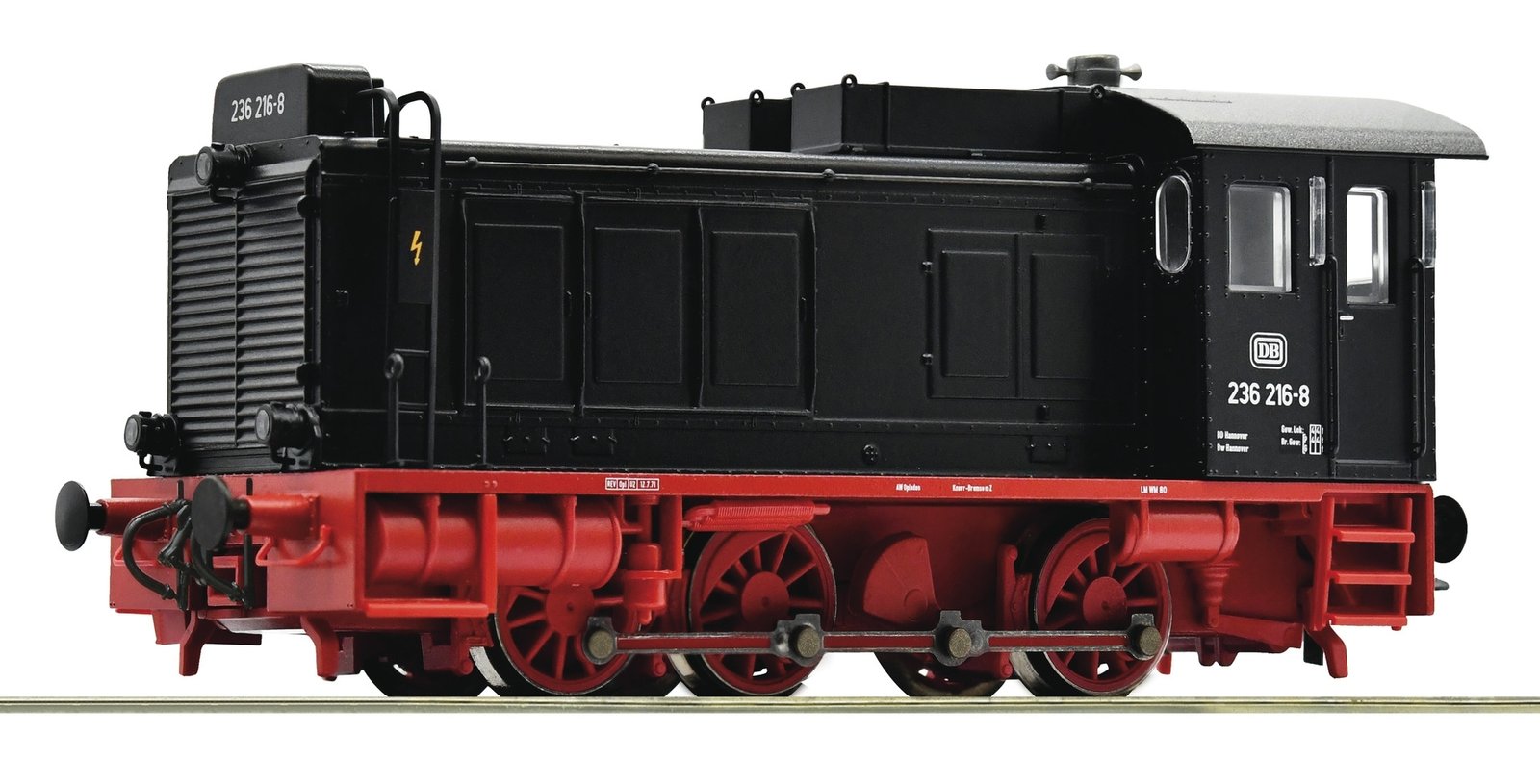

New Diesel locomotive -- Diesellokomotive -- 236 216-8 - DB - HO - Roco Fleischmann 70801 View larger

Diesel locomotive -- Diesellokomotive -- 236 216-8 - DB - HO - Roco Fleischmann 70801

70801

New product

Diesel locomotive 236 216 of the German Federal Railway.



■ Version without raised cab
■ Enlarged cooling water expansion tank
■ Additional fuel tanks on the engine hood
■ Switchable shunting light in digital mode

More details

$239.00 Tax excluded

Add to wishlist

Data sheet

GaugeHO
Operation:DC
EpochIV
Railway company:German Federal Railways
EAN/UPC9005033708016

More info

Diesel locomotives of the type WR 360 C 14 were originally operated by the German Wehrmacht for use in strategically important locations. At the end of the Second World War, they were put into operation for many civilian uses.
Although the V 36 continued to run, curiously enough, under the same name in both East and West Germany after the war, they were in fact two substantially different versions of the same locomotive: The DB model featured two additional fuel tanks on the engine front end to increase the locomotive’s range. In addition, the DB V 36 was provided with a DB-type front radiator grille and a cooling water expansion tank on the front end. The side fan grilles were closed up using panelling and there was no side maintenance flap on the front end.
The last locomotive of this type was operated by the DB under the designation class 236 until 1981.


Additional Information

General data

Coupling

NEM shaft 362 with close coupling mechanism

Minimum radius

358 mm

Flywheel

yes

Number of driven axles

3

Number of axles with traction tyres

1

Article number

70801

Scale

H0

Epoch

IV

Railway Company

DB



Electrical

Motor

5-pole motor

Head light

Both sides of the vehicle are equipped with direction dependent triple headlights.

LED head light

yes

Control

DC Digital

Interface

Electrical interface for traction units according to NEM 652 standards with plug-in fixture

Digital decoder

NEM 652

Decoder-Type

MS450F

Sound

yes



Measurements

Length over buffer

106 mm

------------------------------------------------------------------------------------------

Diesellokomotive 236 216 der Deutschen Bundesbahn.



■ Ausführung ohne Dachkanzel
■ Vergrößerter Kühlwasserausgleichsbehälter
■ Kraftstoffzusatztanks auf dem Motorvorbau
■ Im Digitalbetrieb mit schaltbarem Rangierlicht

Die Diesellokomotiven vom Typ WR 360 C 14 wurden ursprünglich von der deutschen Wehrmacht für den Einsatz an strategisch wichtigen Punkten eingesetzt. Mit dem Ende des Zweiten Weltkriegs wurde sie zum zivilen Multitalent.
Wenngleich die V 36 kurioserweise nach dem Krieg in West- und Ostdeutschland unter demselben Namen unterwegs war, gab es deutliche Unterschiede zwischen beiden Varianten: Bei der DB erhöhten zwei zusätzliche Kraftstofftanks auf dem Motorvorbau die Reichweite der Lokomotive. Außerdem bekam die DB-V 36 ein Frontkühlergitter nach DB-Bauart und einen Kühlwasserausgleichsbehälter auf dem Vorbau. Die seitlichen Kühlerlüftergitter wurden mithilfe von Blenden verschlossen, eine seitliche Wartungsklappe am Vorbau entfiel.
Die letzten, nun als Baureihe 236 bezeichneten Lokomotiven, waren bei der DB bis 1981 im Einsatz.


Weitere Informationen

Allgemeine Daten

Kupplung

Schacht NEM 362 mit KK-Kinematik

Mindestradius

358 mm

Schwungmasse

Ja

Anzahl angetriebene Achsen

3

Anzahl Achsen mit Haftreifen

1

Artikelnummer

70801

Spur

H0

Epoche

IV

Bahngesellschaft

DB



Elektrik

Motor

5-pol. Motor

Spitzenlicht

3-Spitzenlicht an beiden Fahrzeugenden, mit Fahrtrichtung wechselnd

LED Spitzenlicht

Ja

Stromsystem

DC Digital

Schnittstelle

Elektrische Schnittstelle für Triebfahrzeuge nach NEM 652 mit Steckvorrichtung

Digital-Decoder

NEM 652

Decoder-Typ

MS450F

Sound

Ja



Abmessungen

Länge über Puffer

106 mm
