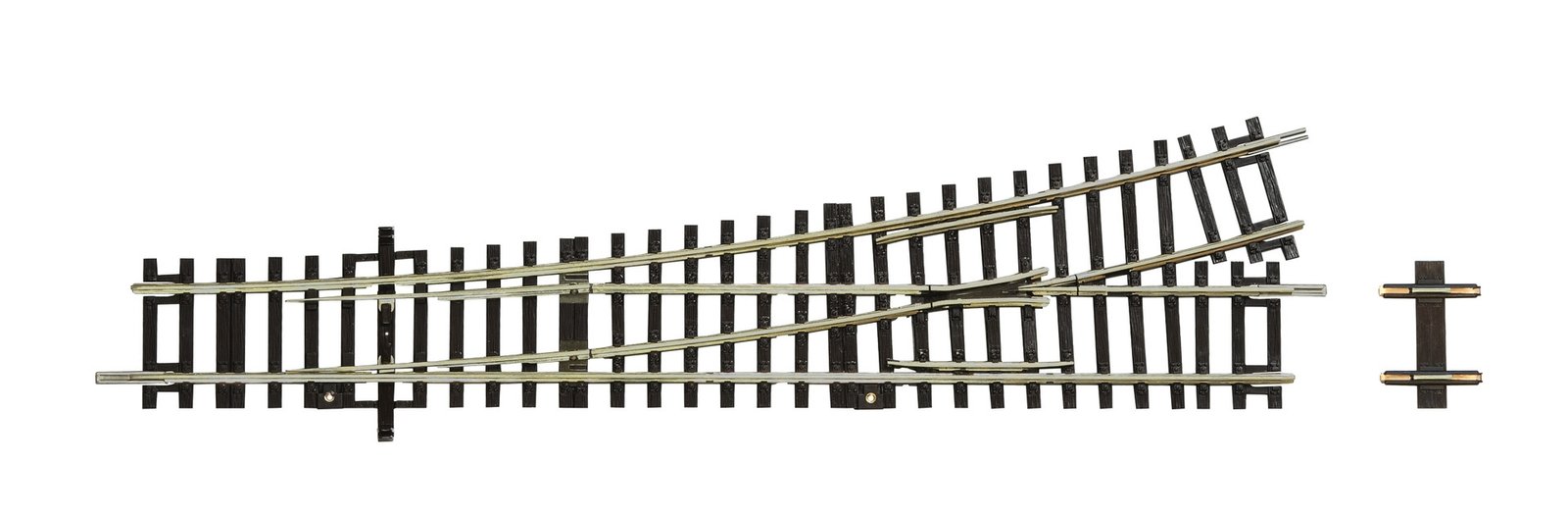

Turnout left hand Wl15, without turnout mechanism.

Length 230 mm (standard length), branch angle 15°, branch radius 873.5 mm, frog angle 10.8°.

An 8-mm spacer element (D8) is included for diagonal installation.

Suitable turnout mechanisms: 40295, 40297 or 10030.

■ Frog and wheel guide completely revised
■ Prototypical passing of the frog possible
■ Groove width in the frog area according to NEM
■ Polarisation of the turnout frog possible in combination with electric ROCO turnout drives
