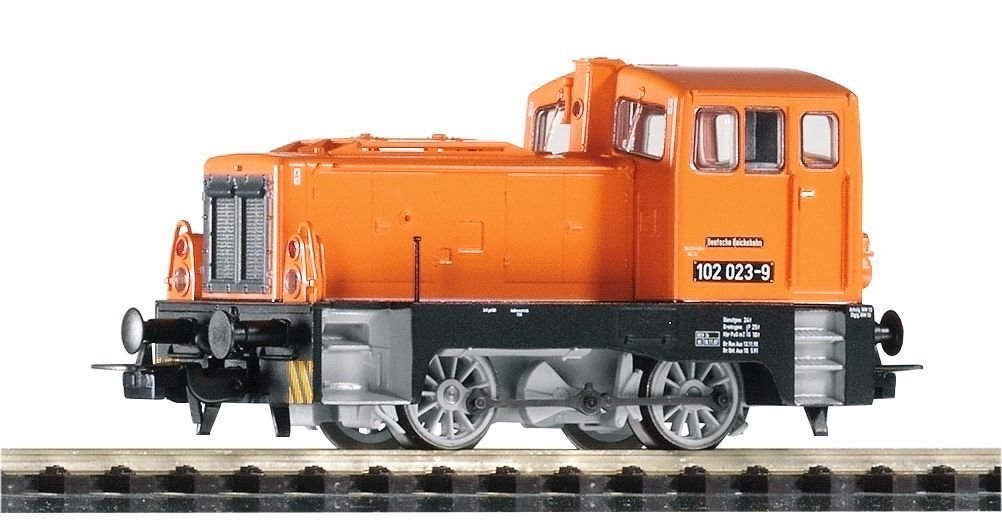

Form novelty of the BR 102 with cranked frame additionally with built-in locomotive sound decoder. The decoder has a total of 25 switchable functions. Many typical locomotive sounds such as the traction motors, signal horns, brake squeal, shunting, and other sounds such as station announcements can be called up individually. Das Schlusslicht ist separat schaltbar. Sound also possible in analog operation - only engine noise.

Logic of the light functions:

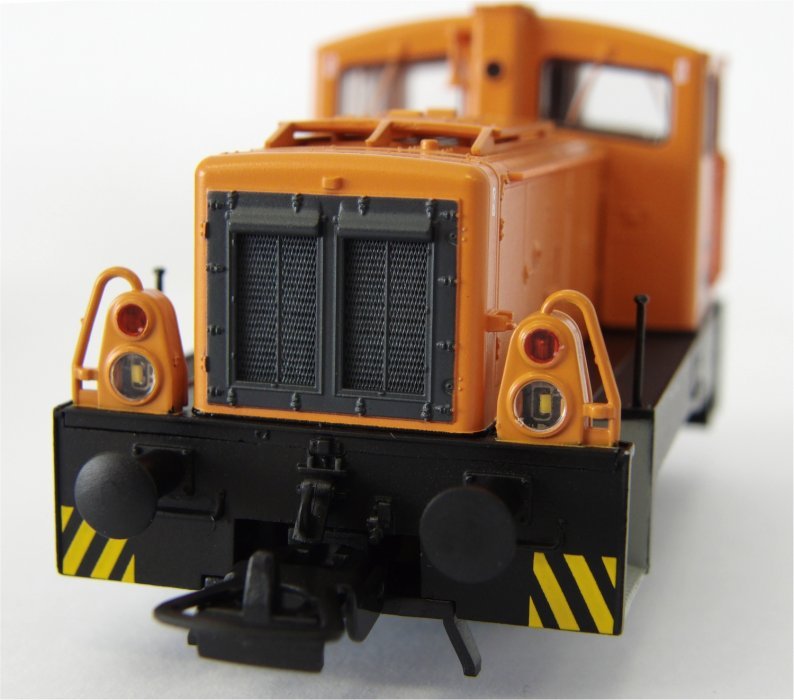

F0 switches front white light (3 lamps on) and rear red (2 lamps) [pictures above].

F6 switches the shunting gear, activating 3 white lamps on each side [center pictures].

F9 switches the shunting lighting, whereby on both sides the lower left lamp (seen in direction of travel) is activated [pictures below].

Features

EAN	4015615525455
Sound yes/no	yes
Type of current	AC
Railway administration	DR
Era	IV
Kind of measurement	LOB / length over buffers
Measurement	80
Minimum radius	358
Digital interface	NEM 658 PluX22
Built-in decoder	PluX22 sound decoder
Interior Lighting / Lights	Digitally switchable cab lighting (with PluX22 Decoder)
Coupling	NEM pocket + close coupler mechanism
Sound	PIKO sound decoder fitted at the factory
Directional lights	Directional light change white / red
Age recommendation	from 14 years
